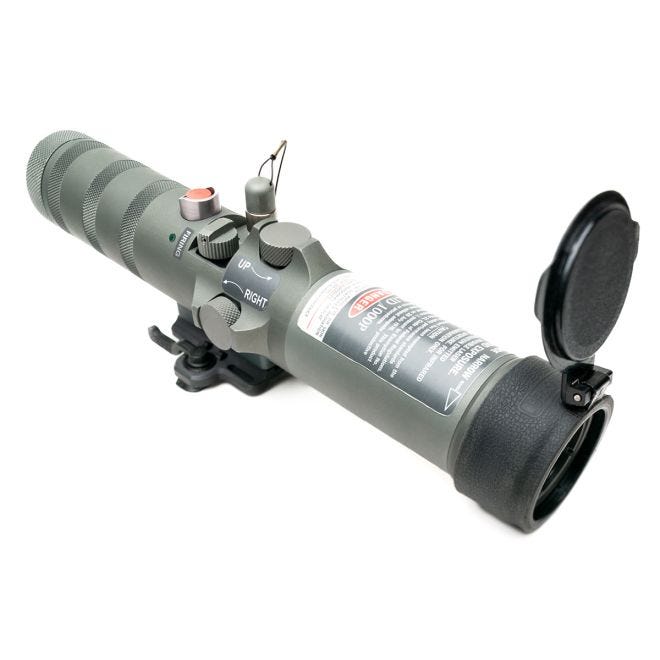

Infrared Zoom Laser Illuminator Designator

    • 428P IZLID 1000P
  • NSN
    • 5855-01-502-6414
    • 4
  • Dimensions
    • 10.71” L x 1.7” W x 2.9” H
  • Weight
    • 27.5 oz
  • Environmentally Sealed
    • Yes - Waterproof to 20m up to 2 hrs
  • Azimuth & Elevation Adjustment
    • Yes - Built into housing

The original standard for close air support and target marking applications, the IZLID 1000P has been serving the TAC-P community for decades. The 1000P is extremely rugged and the enhanced power of the 1 watt infrared (IR) beam is visible by high-altitude aircraft, making the IZLID 1000P optimal for air to ground communication. The beam is effective out to 43km and can be easily adjusted into a flood setting, visible at 0.8° out to 7km.

The IZLID 1000P is boresightable for azimuth and elevation and can be used tripod mounted or handheld, or attached to a MIL-STD-1913 rail.

Parts, Kits, and Accessories

List of all applicable product components, and configurations

  • 1913 Rail Mount |MG01350-00 N/A
  • Cap, Battery, 4AA w/ O-Ring | R08-4AA-BATCAP N/A
  • Holster | HOLSTER-A N/A
  • Flip Cap, Lens #5 | R01-#5FLIPCAP N/A
  • Connector, Aiming Plug 5-PIN | R05-5PIN N/A
  • Cable, Remote Firing (9 in.) | R03T-1MV-9 N/A
  • Cable, Remote Firing (14 in.) | R03T-1MV-14 N/A
  • Knob, ON/OFF | R07-ON/OFF N/A
  • Knob, AZ/EL | R07A-AZ/EL N/A
  • Lens Cleaning Tool | LENSPEN N/A
  • Quick Reference Guide | QR32126-00 N/A


Understand how to procure this B.E. Meyers & Co. product for your mission.
