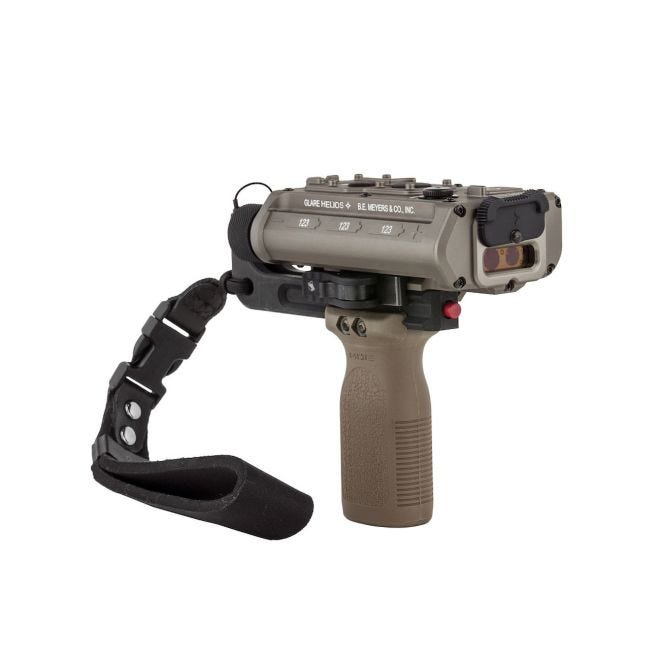

GLARE HELIOS
Class 1M Ocular Interruption Device
- Part Number
- 532-H1
- NSN:
- N/A
- LASER CLASS
- 1M
- Weight W/O Batteries
- 15oz W/O Batteries
- Dimensions
- 5.5” L x 3.0” W x 2.0” H
- Effective Range
- 5 km (Day) - 25km+ (Night)
- Nominal Ocular Hazard Distance (NOHD)
- 0m
- Max Output
- 250mW Max
- Power Source
- 3 Li-Ion CR123
- Output Modes
- Constant // Pulse 9.5 Hz
The GLARE HELIOS is the only Class 1M ocular interruption device that is FDA approved for use by local, state, and federal law enforcement in the United States. Our patented SmartRange technology and proven Hail and Warning capability have been integrated into the GLARE HELIOS to affect an immediate, directional, and EyeSafe visual deterrent in excess of several thousand meters, and is ideal for maritime interdiction operations.
The EyeSafe green beam sends a clear and undeniable visual signal that is effective at extreme ranges and in adverse conditions. The GLARE HELIOS can be used in multiple configurations including hand-held, rail mounted, or integrated into other non-lethal systems including remote station operation. The device has the optional feature of mounting a red dot optic for daytime aiming, as well as a shoulder stock mount for increased stability in rough conditions.
Parts, Kits, and Accessories
List of all applicable product components, and configurations
- Pistol Grip | D532VPS-R26 5860-01-664-1453
- Rail Grabber | R14-LOCKLVR 5860-01-664-2452
- Mode Select Knob | R07-532-VC 5355-01-664-2603
- Receptacle Cap | R05-FSHCAP-LYRD 5342-01-664-1555
- Battery Cap | R08-CR123CAPBK 5999-01-664-0740
- Remote Fire Cable | R03-TFV-6G 5860-01-664-1412
- Safety Lens Cover | R01-VPSCOVER 5860-01-664-0844
- Cleaning Kit | R13-CLEANKIT 5860-01-664-1177
- Wrist Lanyard | R08-WRSTLNYRD 8465-01-664-2212
- Holster | HOSLTER-VPS 8465-01-664-2336
- Quick Reference Card | QRC64313-00 N/A
- Operator's Manual | OMC64269-00 N/A
