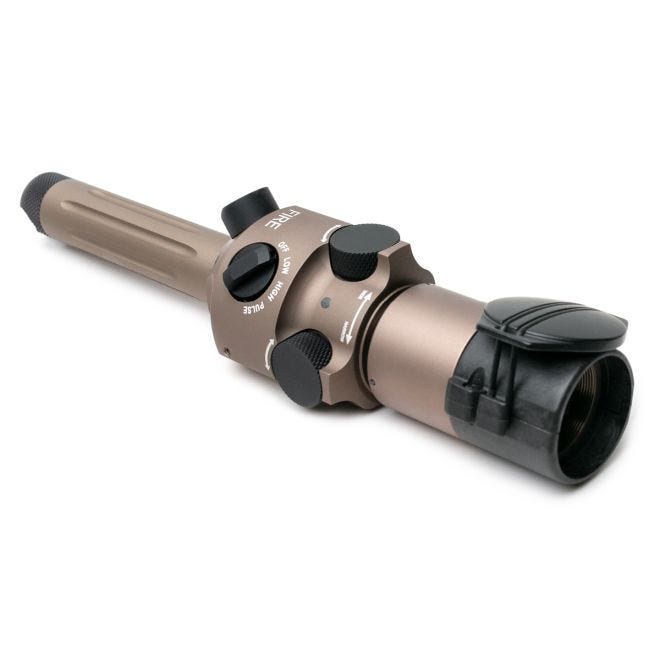

IZLID ULTRA

1W Infrared Zoom Laser Illuminator Designator

Specifications
Description
  • PART NUMBER
    • 434P
  • NSN
    • N/A
  • LASER CLASS
    • 4
  • WEIGHT
    • 11.7 oz w/batteries
  • DIMENSIONS
    • 8.6" L x 1.7" W x 1.8" H
  • WAVELENGTH
    • NIR
  • POINT RANGE
    • 43 km
  • FLOOD RANGE
    • 7km
  • MAX OUTPUT
    • 1 watt
  • POWER SOURCE
    • Two (2) 3V CR123A
  • HOUSING
    • Waterproof 20m up to 2 hrs
  • BEAM DIVERGENCE
    • 0.08° - 0.7°

The new standard for Close Air Support and target marking applications, the IZLID Ultra maintains all of the power and capability of its predecessor, the IZLID 1000P, but at a fraction of the original weight and size. The laser can be hand held or rail mounted for greater stability and ease of operation. The IZLID Ultra combines the rugged and dependable features of all B.E. Meyers & Co. products, and at 11.7 oz, it is designed with the TAC-P community in mind.

The enhanced power of the 1 watt infrared (NIR) beam is visible by high-altitude aircraft, making the IZLID Ultra optimal for air-to-ground integration. The beam is effective out to 43 km and can be easily adjusted to a 12mrad flood setting for illumination out to 7 km and beyond.

Parts, Kits, and Accessories

List of all applicable product components, and configurations

  • 1913 Rail Mount & Clamp Bracket | R14CRL-WPNMNT 5340-01-585-1419
  • Battery Cap, CR123, w/ O-Ring | BCP-CR123-BLK 5999-01-669-1004
  • Flip Cap Assembly | FCA-IZLID 5999-01-669-0617
  • Holster |HOLSTER-AAM 9390-01-581-4972
  • Knob, ON/OFF | ON/OFF-IZLID-BLK 5355-01-669-0634
  • Knob, AZ/EL | AZEL-IZLID-BLK 5355-01-669-0629
  • Remote Firing Switch | R03TMV-9 5930-01-582-0089
  • Quick Reference Card | QR75932-00 N/A

Purchasing

Understand how to procure this B.E. Meyers & Co. product for your mission.
