PrecisionPoint Series

Specifications
Description
  • OUTPUT POWER
    • Low: 375 mW - High: 770 mW Pulse: Customer controlled.
  • WAVELENGTH
    • 860 nm
  • BEAM DIVERGENCE
    • 1.25 x 1.0 mrad
  • CONTROL INTERFACE
    • Discrete - High, low, and pulse modes.
  • POWER REQUIREMENTS
    • 5.V dc @ less than 1.5A
  • CONSTRUCTION
    • Aircraft aluminum, black anodize. Stainless steel hardware.
  • OPERATIONAL TEMP
    • -40° to +55° C
  • NOHD
    • 371m @ High power
  • DIMENSIONS
    • 4.2 x 2.0 x 1.0 in
  • WEIGHT
    • 8.5 oz
  • MAX ALTITUDE
    • 50,000 ft
  • ENVIRONMENTAL
    • MIL-STD for Environmental, EMI, Shock and Vibration

The PrecisionPoint® Series offers two different NIR commercial laser components (standard and NDL) with two output modes per laser (low, high, (Pulse can be obtained by modulating the low or high enable line)). This Series is designed to assist low-light, high-magnification sensors.

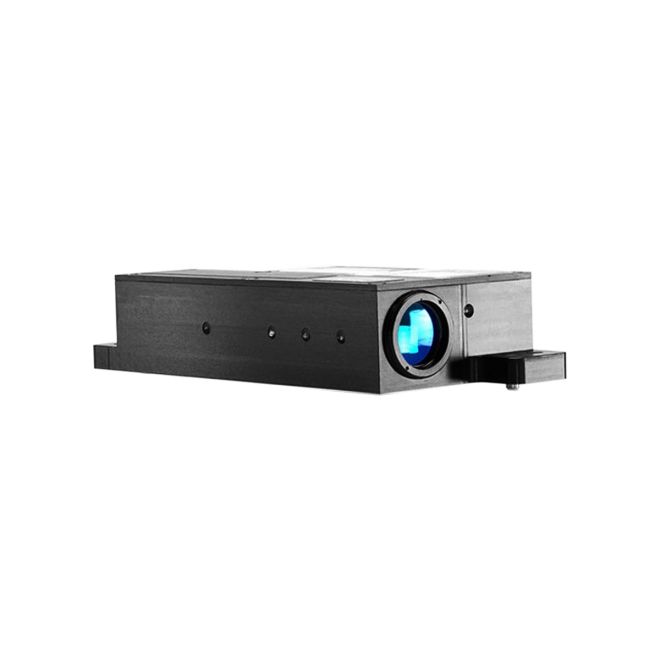

The PrecisionPoint® Standard is an 770mW high powered, 1 mrad, NIR commercial laser component designed for integration into EOIR systems. The PrecisionPoint® Standard is a one-piece laser that provides a collimated beam that can be used for pointing or illumination for higher magnification sensors. This laser is effective over longer ranges and has two modes of operation (low, high, (Pulse can be obtained by modulating the low or high enable line)).
